Product Center

Used Excavators & Construction Machinery

500+ live units · XCMG specialist · Mini, medium and large class · Crawler and wheeled.

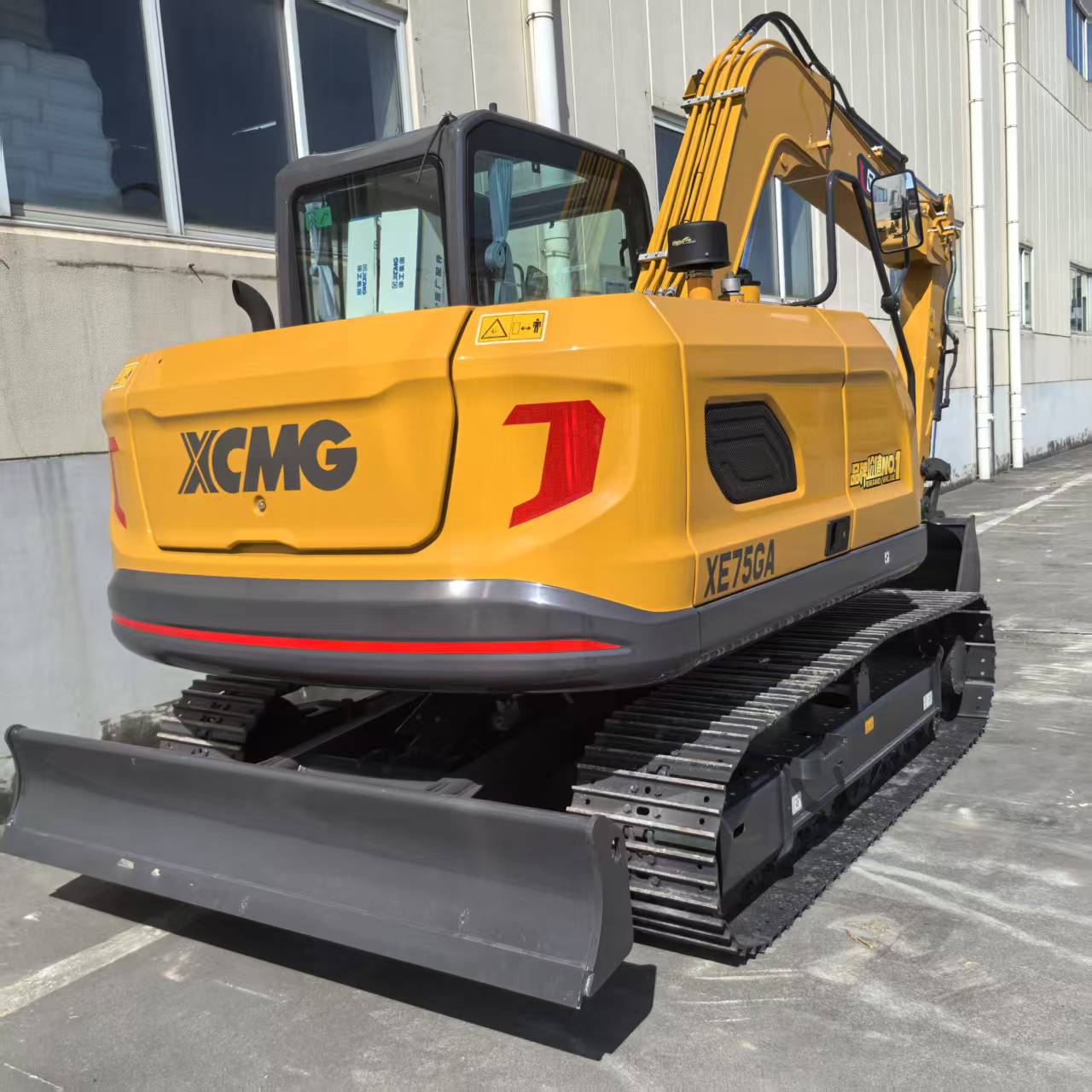

XCMG XE75GA
Mini · 2022
XCMG XE75GA
1,800 hrs · 7.5 t
FOB $38,000
In Stock
Inquire Now
XCMG XE60GA
Mini · 2021
XCMG XE60GA
2,100 hrs · 6.0 t
FOB $32,500
In Stock
Inquire Now
XCMG XE60G Pro
Mini · 2023
XCMG XE60G Pro
950 hrs · 6.0 t
FOB $36,000
In Stock
Inquire Now
XCMG XE155D
Medium · 2021
XCMG XE155D
3,200 hrs · 15 t
FOB $58,000
In Stock
Inquire Now
XCMG XE200
Medium · 2020
XCMG XE200
4,500 hrs · 20 t
FOB $62,000
In Stock
Inquire Now
XCMG XE215D
Medium · 2022
XCMG XE215D
2,600 hrs · 21.5 t
FOB $78,000
In Stock
Inquire Now
XCMG XC968
Loader · 2021
XCMG XC968
3,800 hrs · Wheel Loader
FOB $54,000
In Stock
Inquire Now
XCMG 760K
Loader · 2020
XCMG 760K
4,100 hrs · Wheel Loader
FOB $42,000
In Stock
Inquire Now
OEM Technical Data

Full Excavator & Loader Specifications

Complete factory configuration tables for our headline XCMG models — engine, hydraulic, working scope and dimensional data straight from the OEM brochures.

Mini Crawler Excavator · 6 t

XCMG XE60G PRO

Request Quote

Compact crawler excavator with Kubota V2607 engine — ideal for urban, utility & landscaping work.

Main Performance
Operating Weight
6,000 kg
Bucket Capacity
0.24 m³
Travel Speed (H/L)
4.2 / 2.4 km/h
Swing Speed
11 r/min
Gradeability
≤35°
Ground Pressure
33.4 kPa
Bucket Digging Force
48.3 kN
Arm Digging Force
32.5 kN
Max Tractive Force
50.5 kN
Engine
Model
Kubota V2607
Type
Direct injection · 4-stroke · Water cooled
Cylinders
4
Power / Speed
35.0 kW @ 2,200 rpm
Max Torque
171.5 N·m @ 800–1,800 rpm
Displacement
2.615 L
Hydraulic System
Main Pump
Piston pumps
Rated Flow
158.4 L/min
Valve Pressure
24.5 MPa
Travel Pressure
24 MPa
Swing Pressure
24 MPa
Pilot Pressure
3.5 MPa
Working Scope
Max Digging Height
5,630 mm
Max Dumping Height
3,945 mm
Max Digging Depth
3,830 mm
Max Vertical Depth
2,680 mm
Max Digging Reach
6,130 mm
Min Swing Radius
2,460 mm
Dimensions
Overall Length
6,010 mm
Overall Width
2,000 mm
Overall Height
2,650 mm
Turntable Width
1,880 mm
Track Length
2,535 mm
Track Width (shoe)
400 mm
Track Gauge
1,600 mm
Min Ground Clearance
385 mm
Min Tail Swing Radius
1,700 mm
Capacities
Fuel Tank
130 L
Hydraulic Tank
85 L
Engine Oil
9 L
Mini Crawler Excavator · 6 t

XCMG XE60GA

Request Quote

Updated 6-ton class with Yanmar 4TNV94L turbo engine and reinforced undercarriage.

Main Performance
Operating Weight
6,050 kg
Bucket Capacity
0.25 m³ (opt. 0.07–0.30 m³)
Travel Speed (H/L)
4.2 / 2.4 km/h
Swing Speed
11 r/min
Gradeability
35°
Ground Pressure
32.5 kPa
Bucket Digging Force
48.3 kN
Arm Digging Force
32.5 kN
Max Tractive Force
50.5 kN
Engine
Model
Yanmar 4TNV94L
Type
Direct injection · Turbocharged · Water cooled · 4-stroke
Cylinders
4
Power / Speed
35.9 kW @ 2,000 rpm
Max Torque
200.8 N·m @ 1,400 rpm
Displacement
3.054 L
Hydraulic System
Main Pump
Plunger pump
Rated Flow
152 L/min
Valve Pressure
24.5 MPa
Travel Pressure
26 MPa
Swing Pressure
21.6 MPa
Pilot Pressure
3.5 MPa
Working Scope
Max Digging Height
5,630 mm
Max Dumping Height
3,945 mm
Max Digging Depth
3,830 mm
Max Vertical Depth
2,680 mm
Max Digging Reach
6,130 mm
Min Swing Radius
2,460 mm
Max Dozer Cutting Depth
390 mm
Max Dozer Cutting Height
560 mm
Dimensions
Overall Length
6,010 mm
Platform Width
1,880 mm
Overall Height
2,650 mm
Counterweight Clearance
700 mm
Min Ground Clearance
385 mm
Min Tail Swing Radius
1,700 mm
Tumbler Distance
2,135 mm
Track Length
2,680 mm
Track Width
2,040 mm
Track Height
606 mm
Track Shoe Width
400 mm
Capacities
Fuel Tank
130 L
Hydraulic Tank
85 L
Engine Oil
12 L
Medium Crawler Excavator · 13.5 t

XCMG XE135GA

Request Quote

13-ton workhorse with Cummins F4.5 engine — general construction and infrastructure.

Main Performance
Operating Weight
13,500 kg
Bucket Capacity
0.32 – 0.61 m³
Travel Speed (H/L)
5.3 / 3.0 km/h
Swing Speed
10.9 r/min
Gradeability
≤35°
Ground Pressure
41 kPa
Bucket Digging Force
99 kN
Arm Digging Force
74 kN
Max Tractive Force
134 kN
Engine
Model
Cummins F4.5 CS4119
Type
Direct injection · Turbocharged · Air-to-air intercooled · Water cooled
Cylinders
4
Power / Speed
89 kW @ 2,200 rpm
Max Torque
500 N·m @ 1,300 rpm
Hydraulic System
Main Pump
2 × Piston pumps
Rated Flow
2 × 124 L/min
Valve Pressure
31.4 / 34.3 MPa
Travel Pressure
34.4 MPa
Working Scope
Max Digging Height
8,620 mm
Max Dumping Height
6,175 mm
Max Digging Depth
5,545 mm
Max Vertical Depth
8,295 mm
Max Digging Reach
2,445 mm
Dimensions
Overall Length
7,825 mm
Overall Width
2,525 mm
Overall Height
2,950 mm
Turntable Width
2,490 mm
Track Length
3,648 mm
Chassis Overall Width
2,490 mm
Track Wheelbase
2,918 mm
Track Width
1,990 mm
Counterweight Clearance
931 mm
Min Ground Clearance
466 mm
Min Tail Swing Radius
2,360 mm
Track Height
802 mm
Equipment
Standard Boom
4,600 mm
Standard Arm
2,520 mm
Standard Bucket
0.55 m³ (strengthened)
Optional Arm
2,100 / 3,010 mm
Optional Bucket
0.32 – 0.61 m³
Backhoe Loader · 4WD

XCMG XC8-C2570

Request Quote

Multi-purpose backhoe loader with YC4DK100 turbo engine and powershift transmission.

Engine
Brand & Spec.
YC4DK100-T304
Type
4-cylinder turbocharged, high-pressure common rail
Rated Power / Speed
72 / 73.5 kW @ 2,200 rpm
Drivetrain
Gearbox
Power shift
Gears
4 fwd / 3 rev (opt. 4 fwd / 4 rev)
Drive Axle
XCMG wet-type axle
Tyres (Front / Rear)
12.5/80-18 · 19.5L-24
Max Driving Speed
38 km/h
Max Gradeability
≥20°
Turning Radius
4,400 mm
Wheelbase
2,180 mm
Max Tractive Force
≥70 kN
Loading Unit (Front)
Bucket Rated Capacity
1.0 m³
Rated Operating Load
2,500 kg
Max Breakout Force
66 kN
Max Dumping Height
2,770 mm
Max Dumping Range
831 mm
System Pressure
24 MPa
Digging Unit (Backhoe)
Bucket Rated Capacity
0.20 m³
Max Digging Radius
5,426 mm
Max Digging Depth
4,440 mm
Max Digging Force
63 kN
System Pressure
24 MPa
Hydraulic / Steering / Brakes
Working Hydraulics
Dual-pump confluence
Control
Mechanic, SAE mode at digging end
Steering
Full hydraulic
Service Brake
Wet brake on rear wheel
Parking Brake
Caliper brake on rear wheel
A/C
Intelligent heating & cooling
Dimensions & Fluid Capacities
Overall Length
7,340 mm
Overall Width
2,350 mm
Diesel Tank
166 L
Engine Oil
10 L
Antifreeze
17 L
Drive Axle Oil
20 L
Hydraulic Oil
95 L
Transmission Oil
18 L
Wheel Loader · 5 t class

XCMG XC958

Request Quote

5-ton wheel loader with Weichai WD10G220E21 engine — quarry, port and general loading.

Main Performance
Rated Load
5,500 kg
Rated Bucket Capacity
3.2 m³
Rated Power
162 kW
Working Mass
16,950 ± 300 kg
Max Tractive Force
160 ± 5 kN
Max Breakout Force
180 ± 5 kN
Wheel Base
3,350 mm
Wheel Tread
2,250 mm
Dumping Height
3,070 mm
Dumping Range
1,240 mm
Boom Lifting Time
5 s
Total Cycle Time
10 s
Max Gradeability
28°
Steering Angle
40°
Speed Gear 1 (F/R)
13 / 17 km/h
Speed Gear 2 (F)
40 km/h
Overall L × W × H
8,380 × 2,996 × 3,455 mm
Engine
Brand & Model
Weichai WD10G220E21
Type
Inline 6-cyl · water-cooled · turbocharged
Displacement
9.726 L
Emission Standard
China II
Drivetrain & Hydraulics
Gearbox
Planetary, 2 fwd / 1 rev
Drive Axle
XCMG dry drive axle
Tyres (F / R)
23.5-25-18PR / 23.5-25-16PR
Working Hydraulics
Dual-transmission confluence quantitative
Operation Mode
Pilot control
Steering
Full hydraulic
Service Brake
Air-over-hydraulic, 4-wheel caliper disc
Parking Brake
Pneumatic, internal expanding shoe
A/C
Cooling & heating
Fluid Capacities
Diesel
300 L
Engine Oil
20 L
Antifreeze
45 L
Drive Axle Oil
2 × 27 L
Hydraulic Oil
150 L
Brake Fluid
3 L
Wheel Loader Series

XCMG XC948 / XC958 / XC968 Series

Request Quote

XC9 series with Cummins Euro-III engines, full-automatic powershift and load-sensing hydraulics.

Engine — XC948
Type
Cummins Euro-III electronic turbo
Max Torque
949 N·m
Economic Speed
800 – 1,800 r/min
Displacement
6.7 L
Engine — XC968
Type
Cummins Euro-III electronic turbo
Max Torque
1,085 N·m
Economic Speed
800 – 1,800 r/min
Displacement
8.3 L
Electric System (all models)
Voltage
24 V
Battery
2 × 12 V / 120 Ah
Cold Start (approx.)
850 A
Alternator
1,680 W / 70 A
Starter Power (XC948 / XC958 / XC968)
7.8 / 7.8 / 9.0 kW
Cab Noise & Climate
Cab Noise (XC948 / 958 / 968)
74 / 76 / 77 dB
External Radiation Noise
104 / 102 / 104 dB
Ventilation Capacity
9 m³/min
Heating Capacity
10 kW
A/C Capacity
5.6 kW
Cab Certification
FOPS / ROPS (ISO 3471, ISO 3449)
Bucket Range — XC948
Bucket Capacity
2.4 – 2.7 m³
Dumping Load (full steering)
8,660 – 8,700 kg
Bucket Range — XC958
Bucket Capacity
2.5 – 4.5 m³
Dumping Load (full steering)
12,250 – 12,815 kg
Breakout Force
152 – 182 kN
Bucket Range — XC968
Bucket Capacity
3.0 – 5.0 m³
Dumping Load (full steering)
12,999 – 13,706 kg
Boom System (XC948)
Boom Cylinders
2
Cylinder Bore
125 mm
Piston Rod Diameter
70 mm
Stroke
800 mm
Tyre Options
XC948
20.5-25-16PR · 20.5-25 (L3) · 20.5R25 ★★
XC958
23.5-25-16PR · 23.5-25 (L3) · 23.5R25 ★★
XC968
23.5-25-20PR · 23.5-25-24PR

Source: XCMG 2023 product brochures. Technology is continuously improved — specifications may be modified without prior notice. The final interpretation belongs to the OEM.

Original-paint guarantee

No accident, no flood-damage. Original VIN and engine number verified.

Refurbishment optional

Choose factory-as-is or full refurbish with up to 90% restoration.

Overseas inspection welcome

Live video walkaround or in-person inspection arranged on request.
