EV Charging Equipment Catalogue

Portable chargers, AC wallboxes and 30–720 kW DC fast chargers — full model line-up, complete technical data, adapters and customizable plugs for every market.

Portable charger models

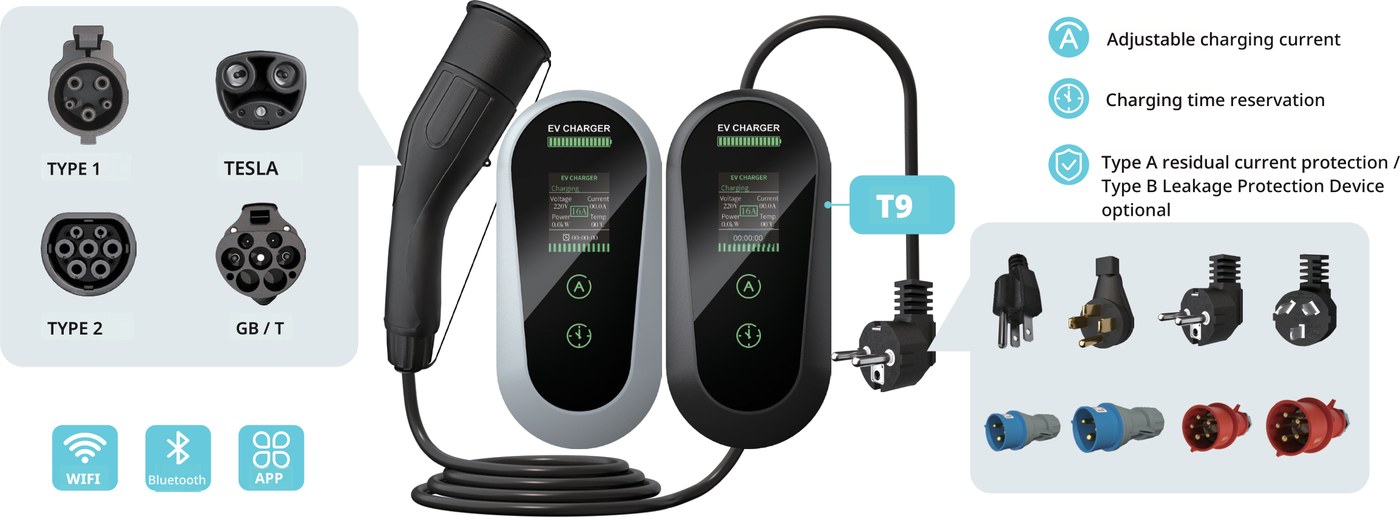

T1A – T9 and P1 series, 3.5 kW to 11.52 kW, Type 1 / Tesla / Type 2 / GB-T.

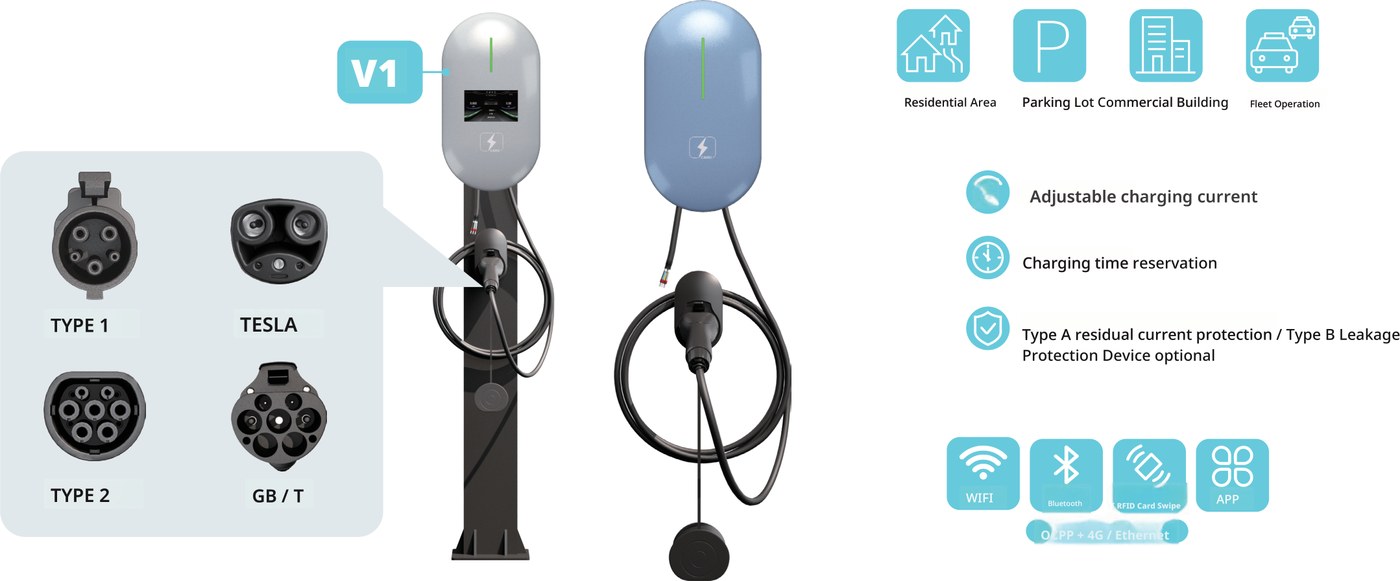

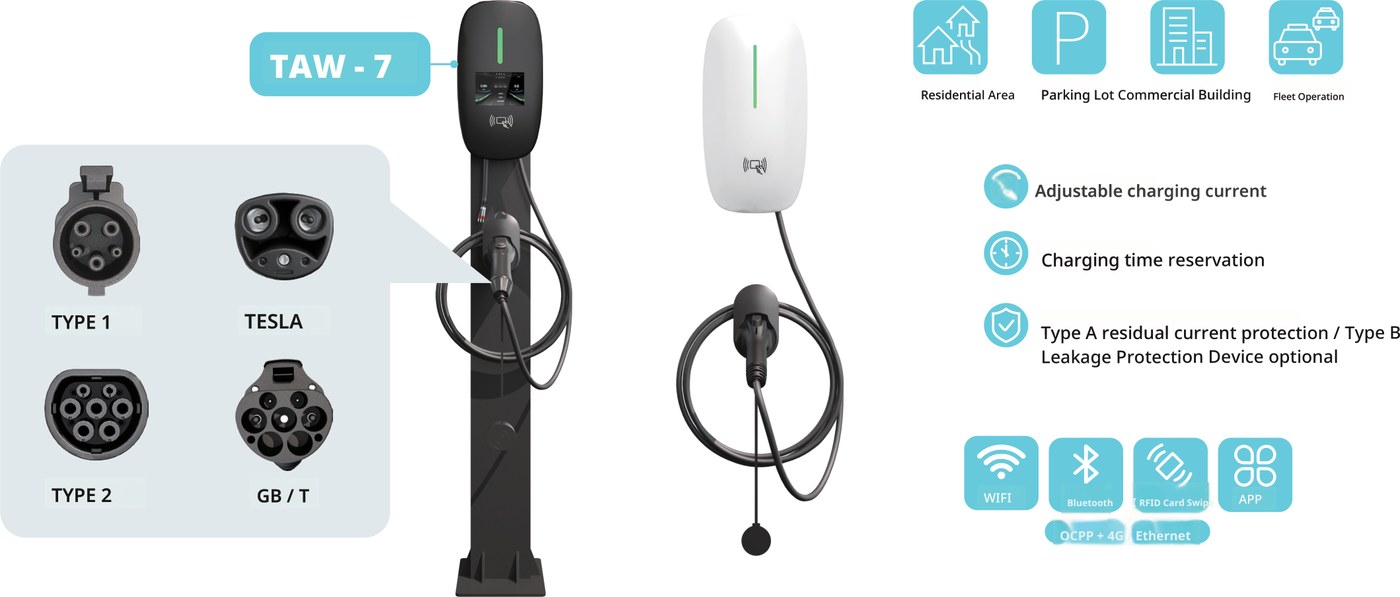

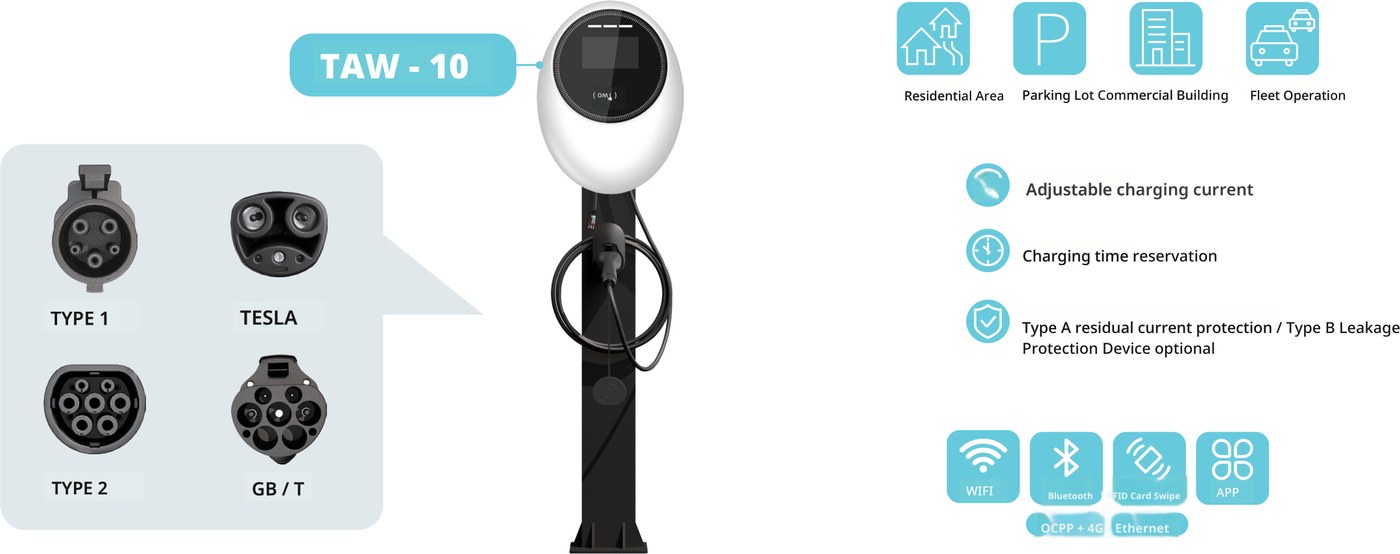

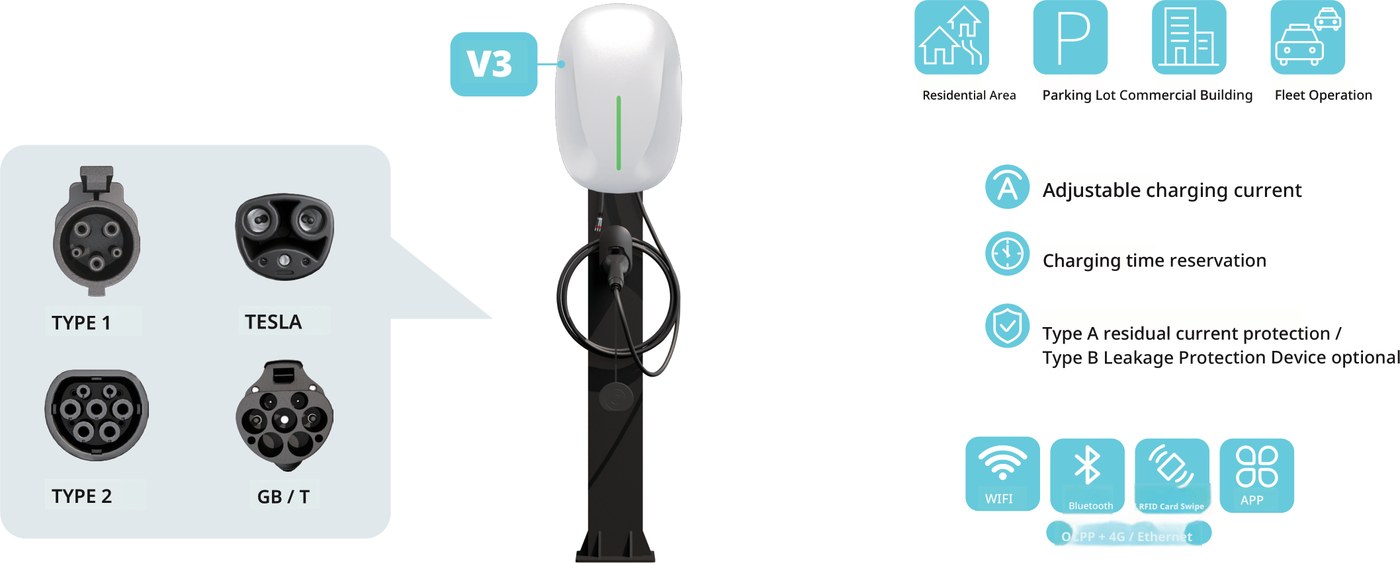

AC wallbox & pedestal models

V-series and TAW-series, 7 kW to 22 kW, OCPP 1.6J operator versions.

DC fast charging platforms

30 kW wall-mounted units up to 720 kW split power cabinets.

Customization

Customizable Plugs & User Interface

Every charger can be supplied with the plug standard of your destination market, plus localized UI language, custom display layout and your own boot-up logo animation.

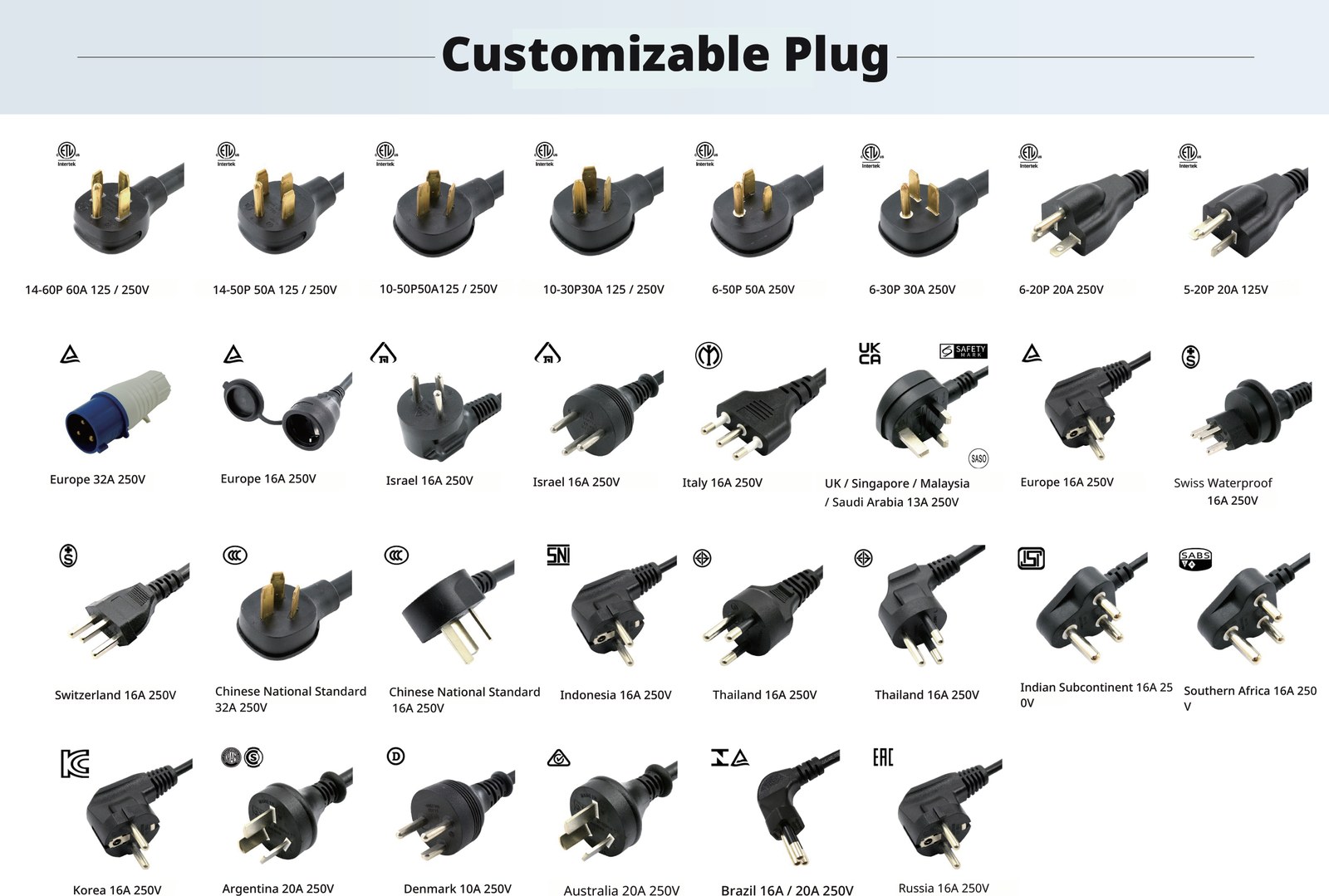

Customizable plug standards

14-60P 60A / 250V14-50P 50A / 250VTT-30P 30A / 250V10-30P 30A / 250V6-50P 50A / 250V6-30P 30A / 250V6-20P 20A / 250V5-20P 20A / 125V5-15P 15A / 125VEurope 16A / 250VEurope 32A / 250VIsrael 16A / 250VItaly 16A / 250VUK / Singapore / Malaysia / Saudi Arabia 13A / 250VSun Waterproof 16A / 250VSwitzerland 10A / 250VChinese National Standard 10A / 250VChinese National Standard 16A / 250VIndonesia 16A / 250VThailand 16A / 250VIndia / Subcontinent 16A / 250VSouthern Africa 16A / 250VKorea 16A / 250VArgentina 16A / 250VDenmark 16A / 250VAustralia 10A / 250VBrazil 16A / 250VRussia 16A / 250V

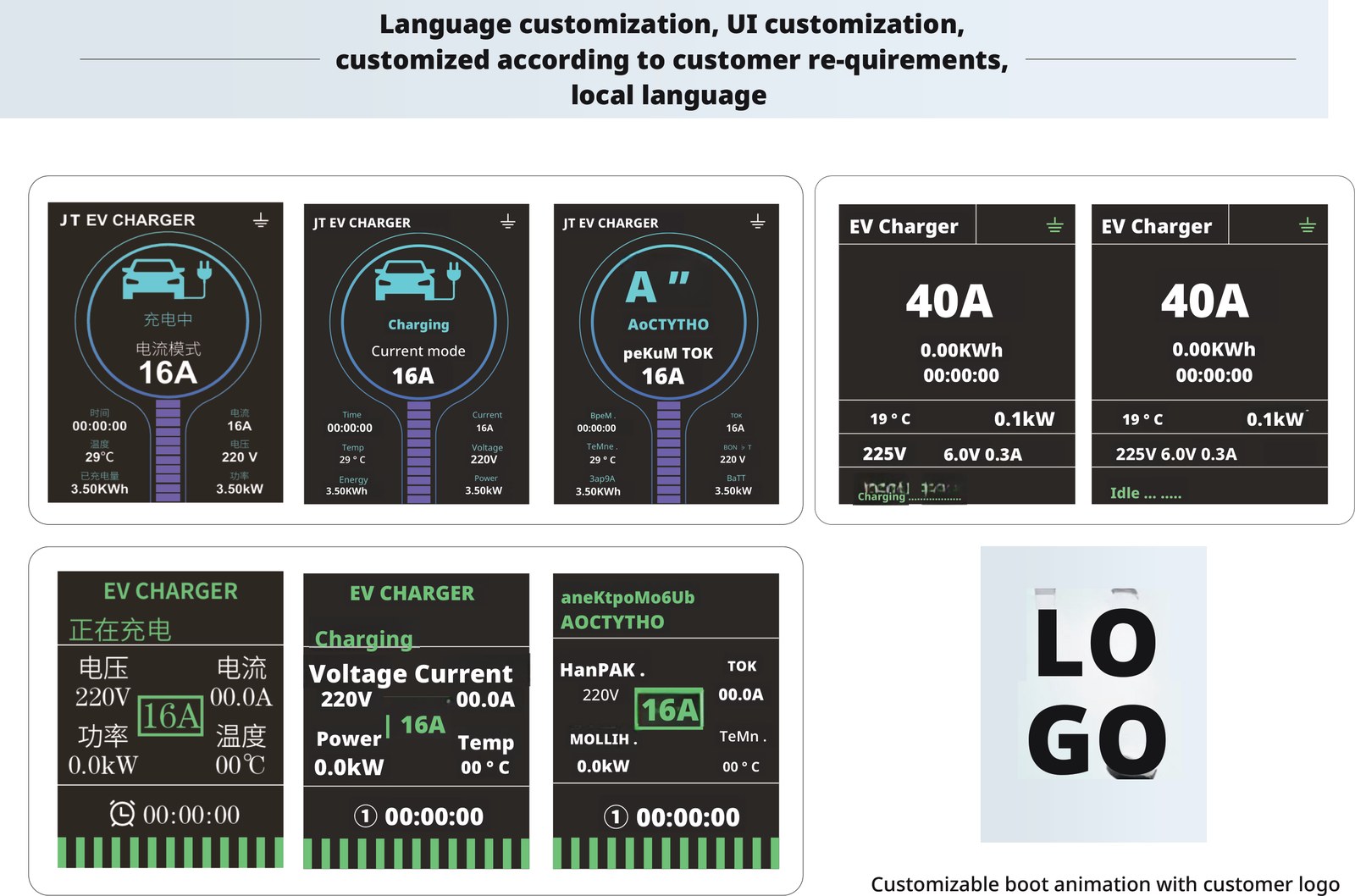

Language & UI customization

Display interface customized according to customer requirements — local language, custom metering layout (voltage, current, power, temperature, energy, timer) and a customizable boot animation carrying your own logo.

Category 01

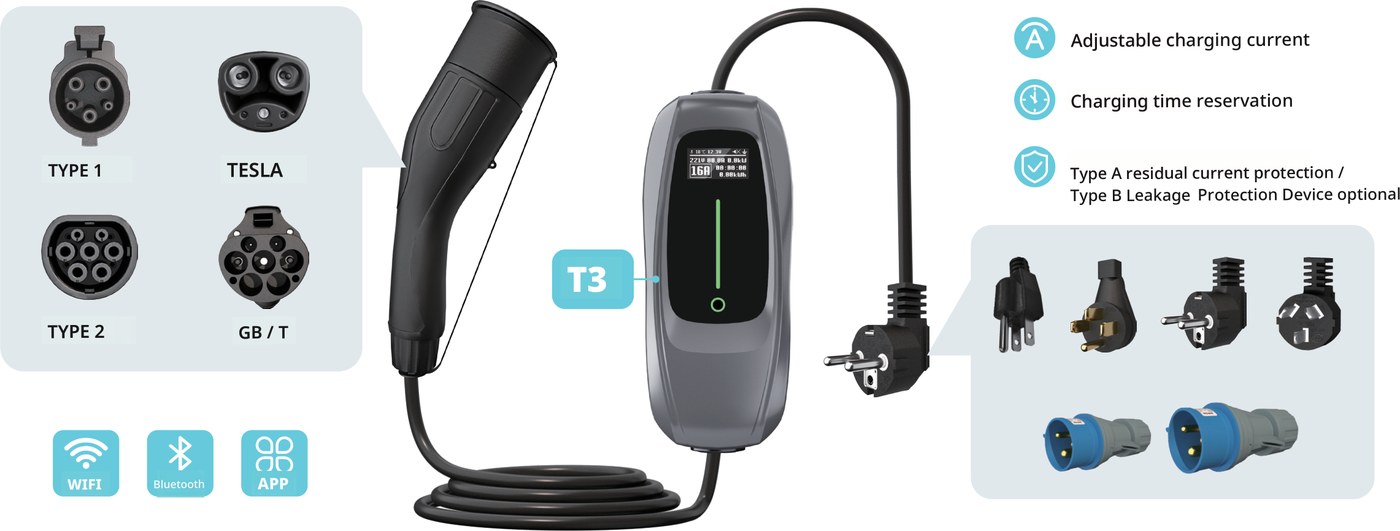

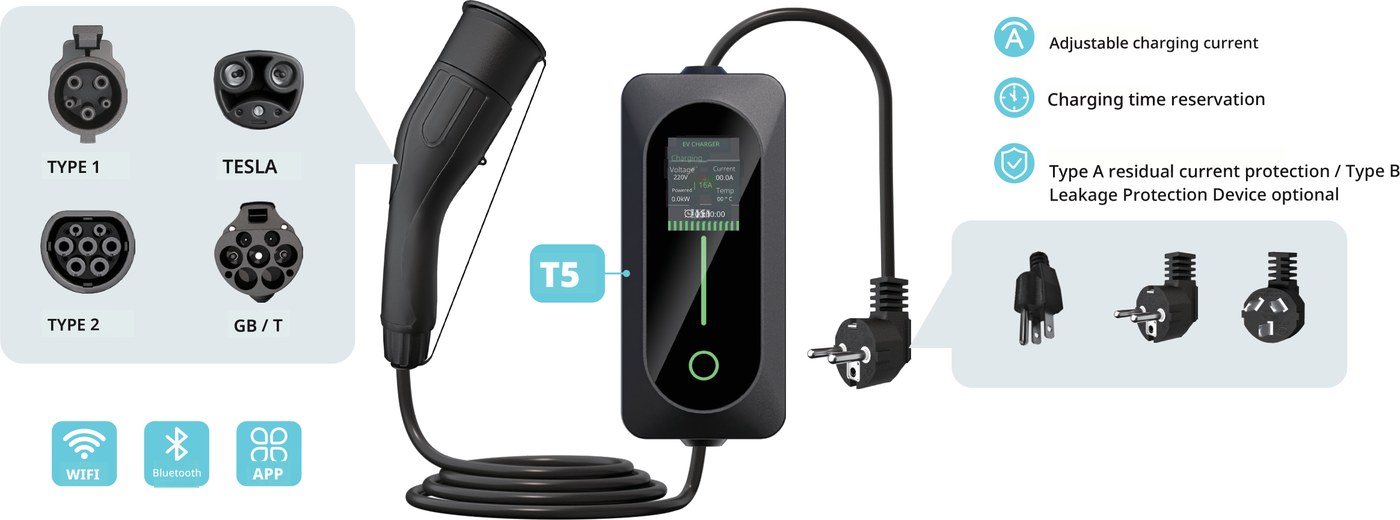

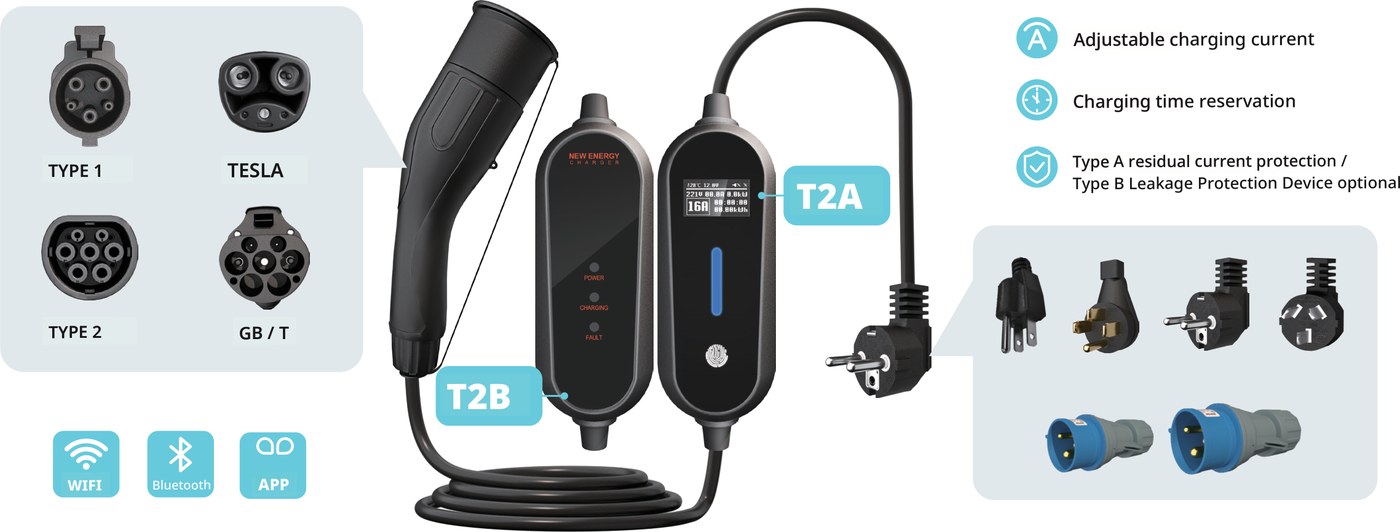

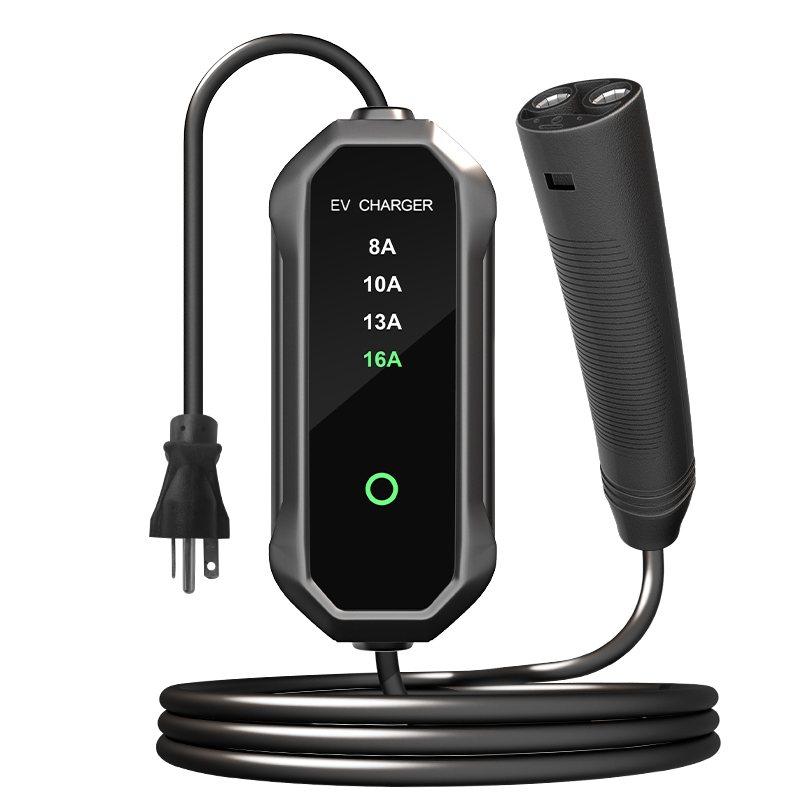

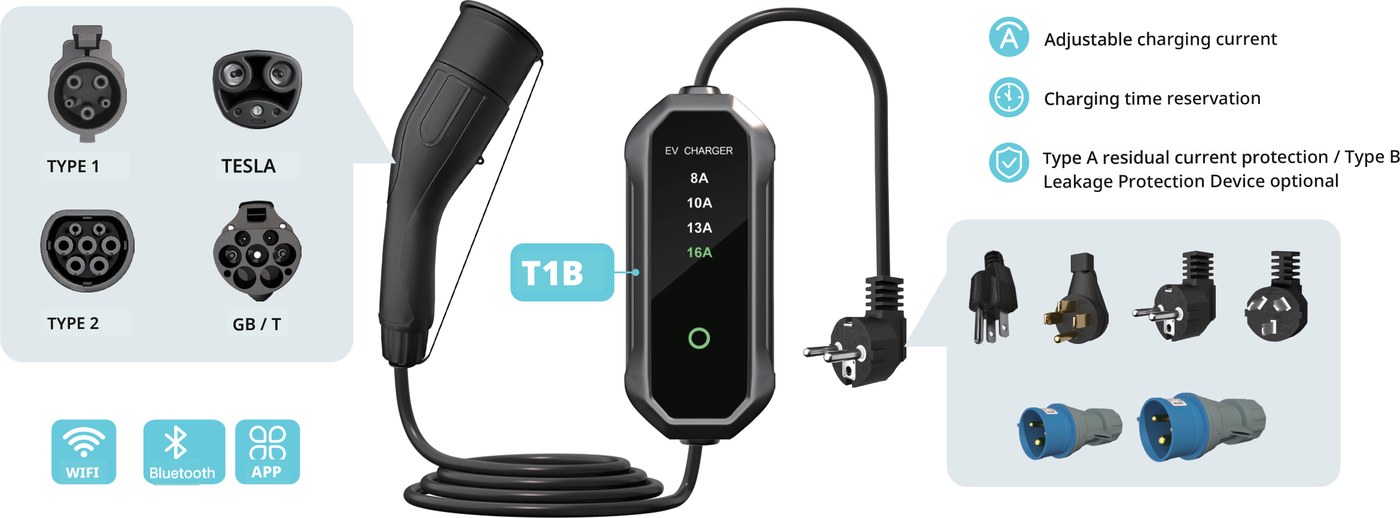

Portable EV Chargers

Mode-2 portable charging units with interchangeable plugs, adjustable current, charging reservation and Type A residual current protection. Cable length 5 m and fully customizable.

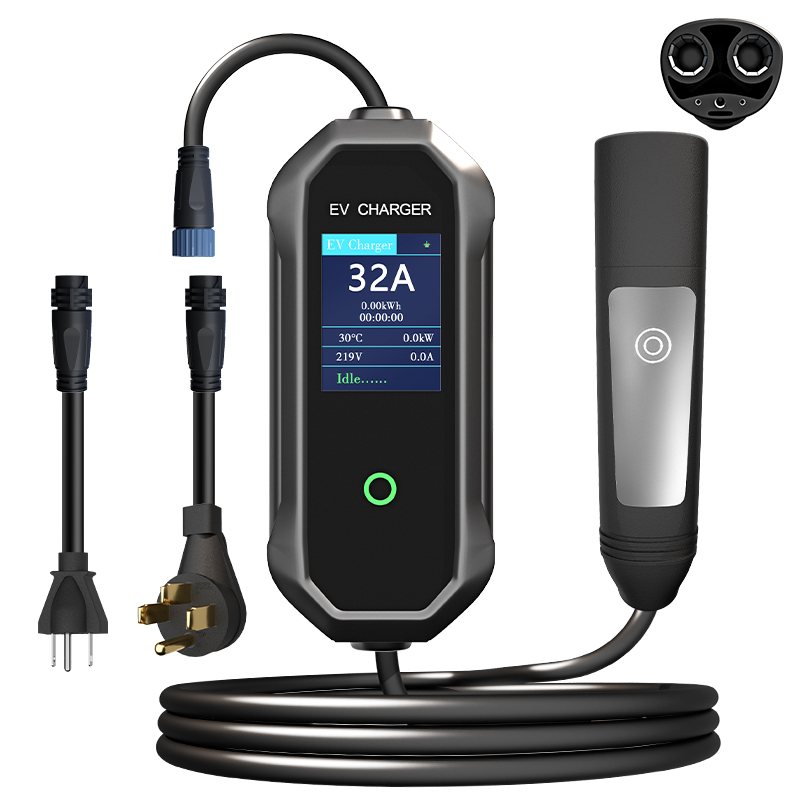

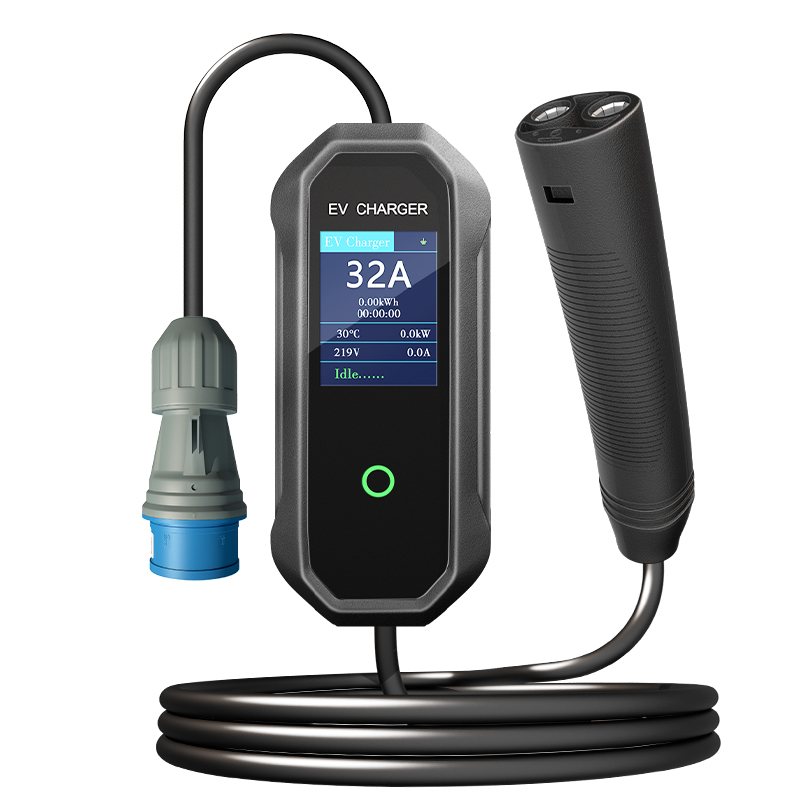

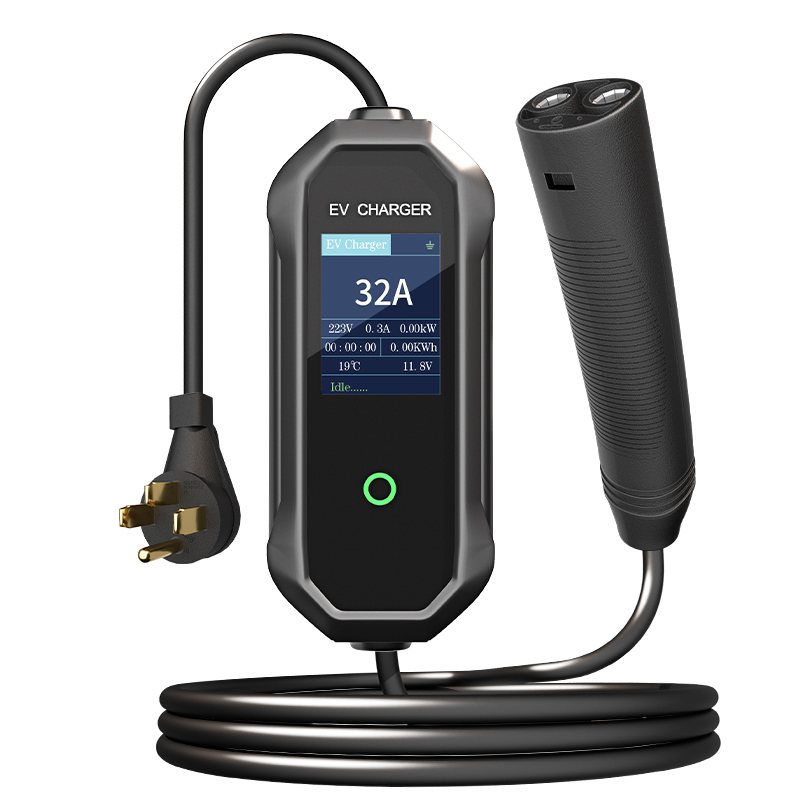

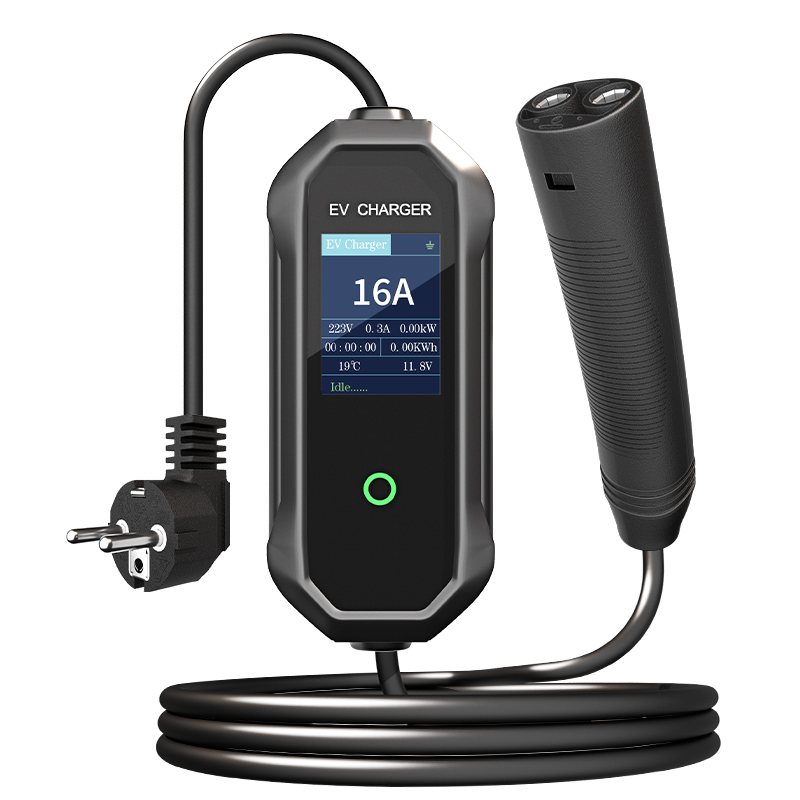

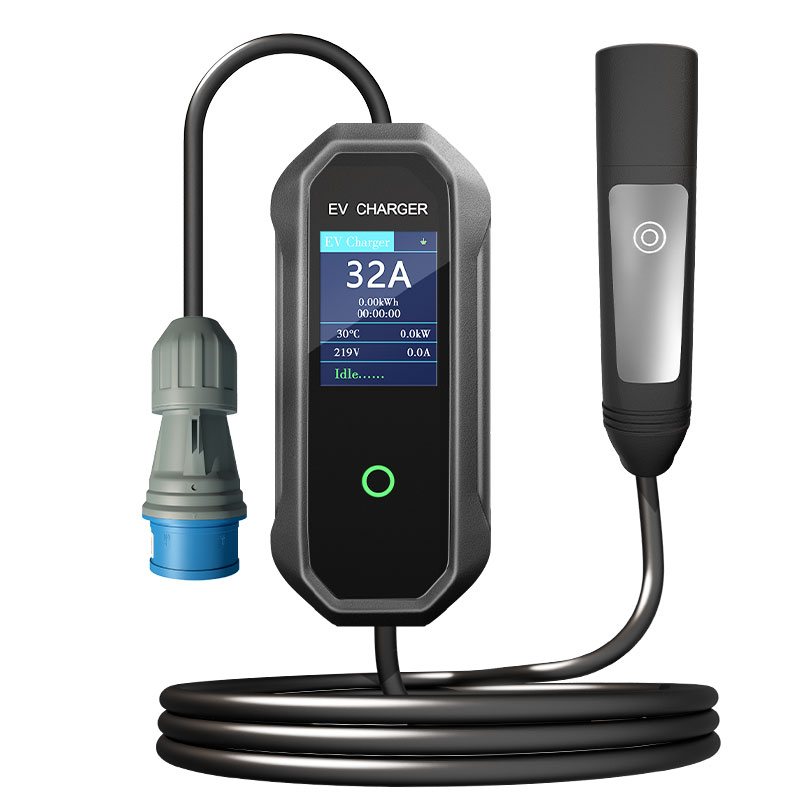

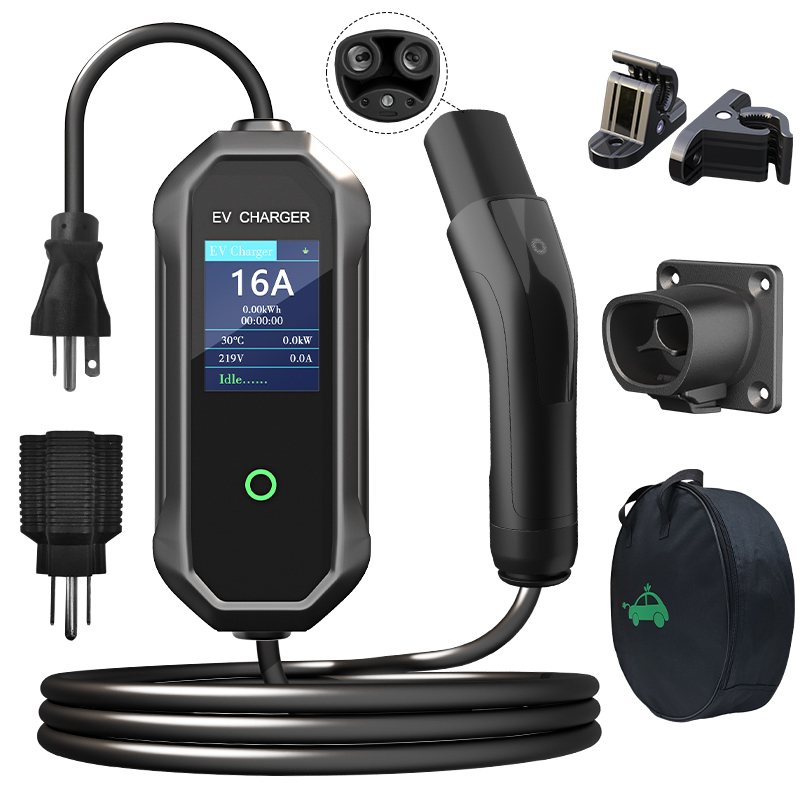

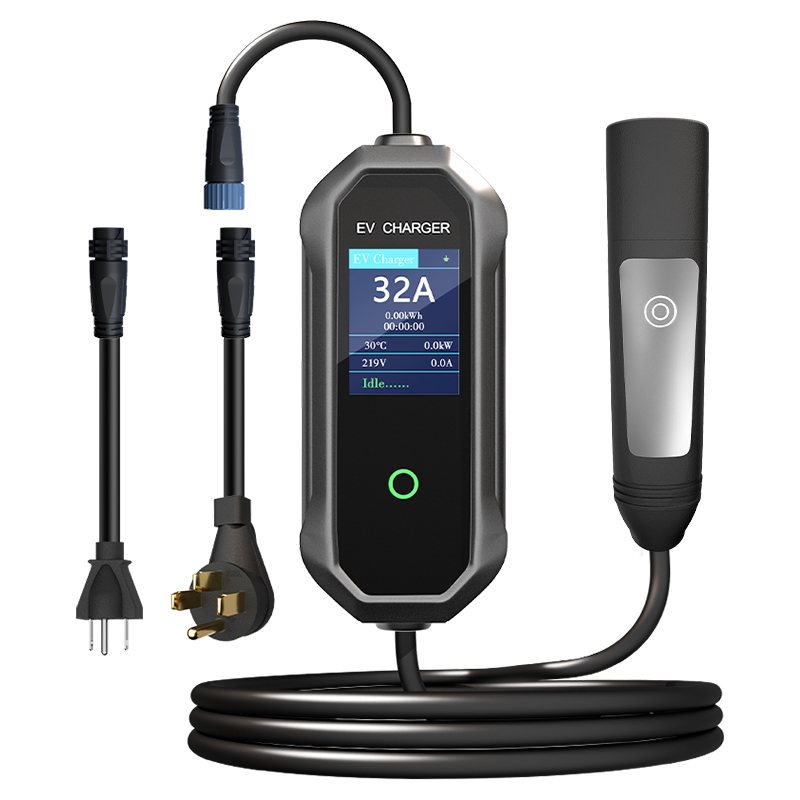

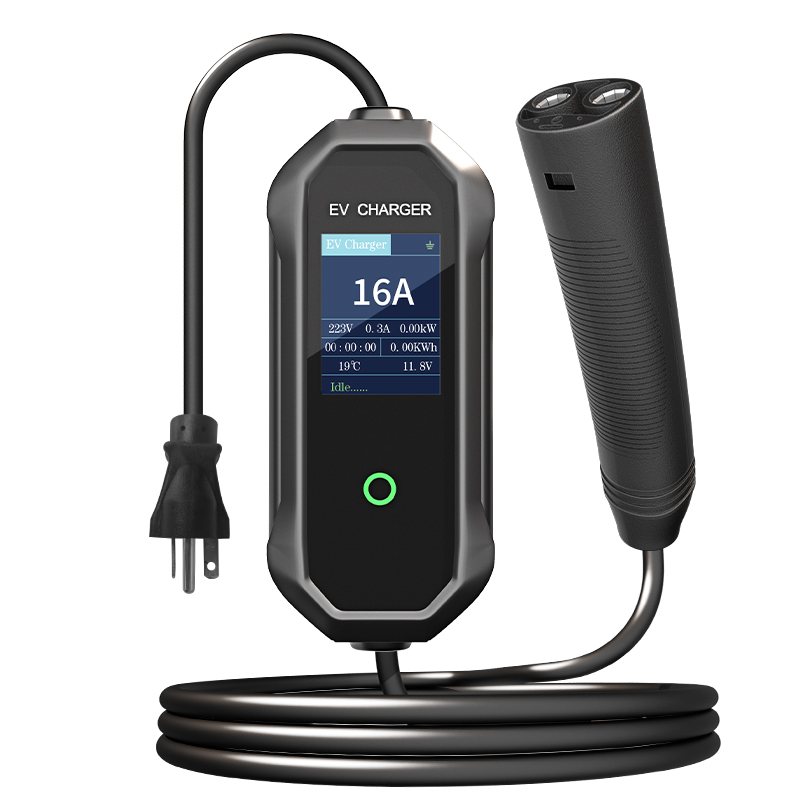

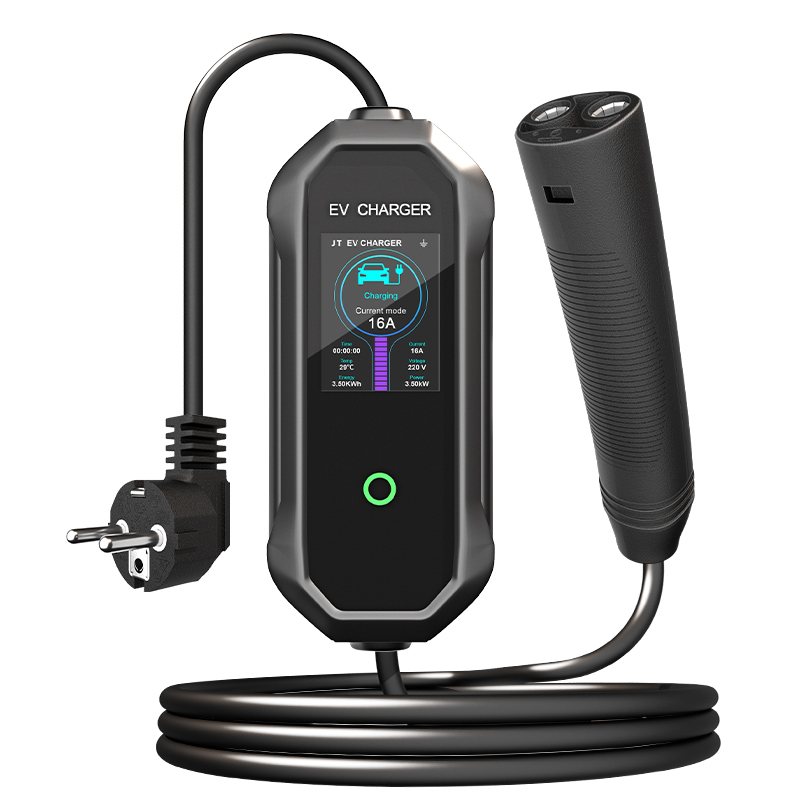

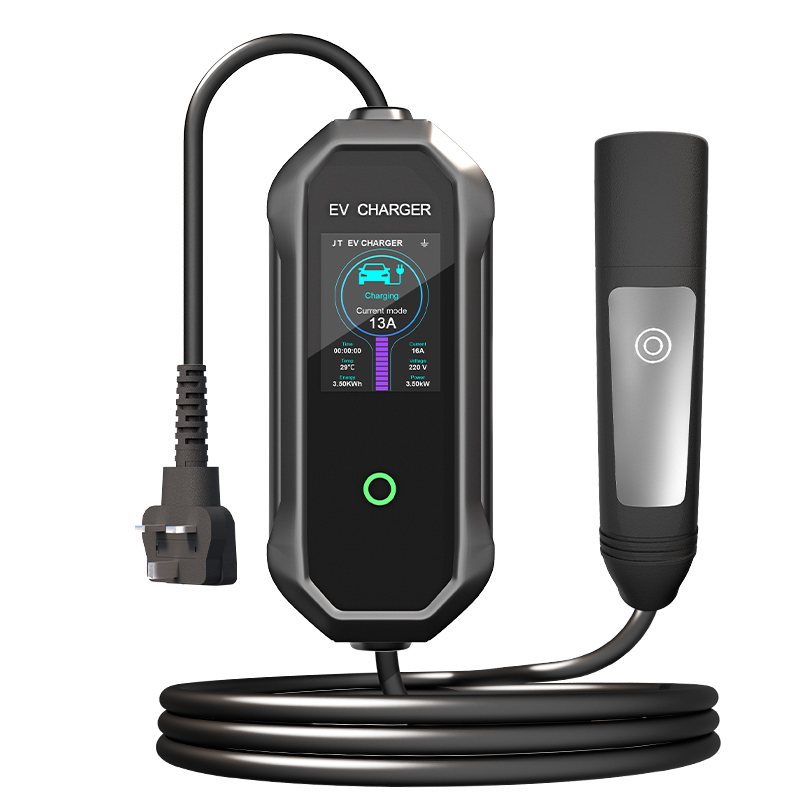

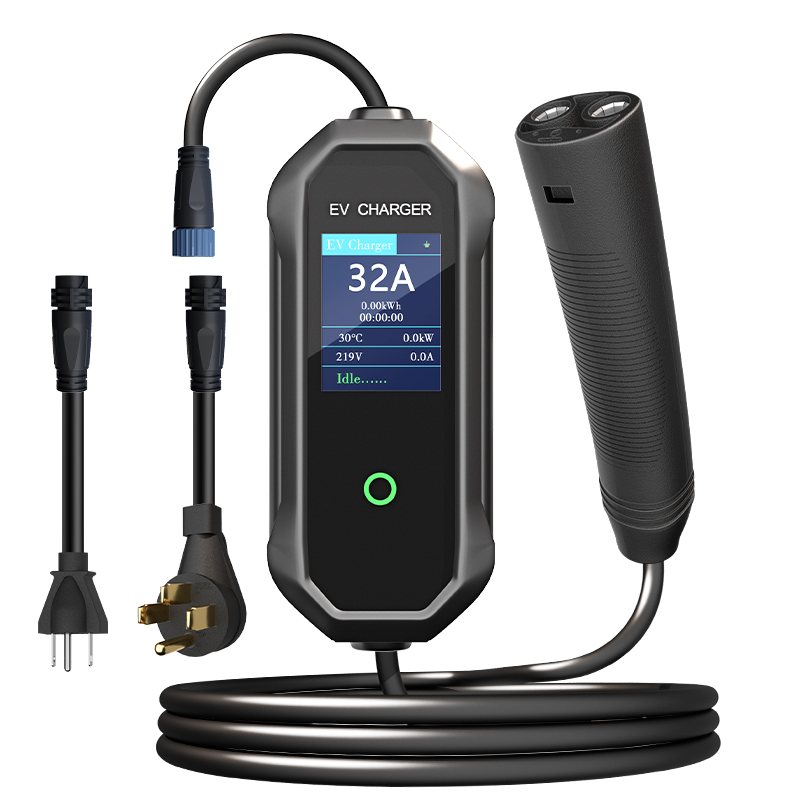

T1AType 1 / Tesla / Type 2 / GB-T

Flagship portable charger with 2.8-inch colour LCD, up to 9.6 kW single phase.

Adjustable charging current
Charging time reservation
Type A residual current protection
WiFi · Bluetooth · APP control (optional)

Rated Current (Type 1 / Tesla)	16A · 32A · 40A
Rated Output Power (Type 1 / Tesla)	3.5 kW · 7.68 kW · 9.6 kW
Type 2 / GB-T	16A 1-phase 3.5 kW · 32A 1-phase 7 kW · 16A×3 3-phase 11 kW
Adapter Plug	NEMA 6-20P · NEMA 14-50P · Type F · 3 pin 32A CEE · 5 pin 16A CEE
Rated Input Voltage	240V ± 15% AC
Total Length	5 m (length customizable)
Leakage Protection Device	Type A residual current protection (Type B optional)
Enclosure Material	PC / ABS
Charging Mode	Plug and Play / Card Charging
WiFi / Bluetooth / APP	Optional
Human-Machine Interface	2.8-inch LCD display

Rated Current	16A · 32A
Rated Output Power	3.5 kW · 7.68 kW
Type 2 / GB-T	16A 1-phase 3.5 kW · 32A 1-phase 7 kW
Adapter Plug	NEMA 6-20P · NEMA 14-50P · Type F · 3 pin 32A CEE
Rated Input Voltage	240V ± 15% AC
Total Length	5 m (length customizable)
Leakage Protection Device	Type A residual current protection (Type B optional)
Enclosure Material	PC / ABS
Charging Mode	Plug and Play / Card Charging
WiFi / Bluetooth / APP	Optional
Human-Machine Interface	LED indicator light

Rated Current	16A · 32A · 40A · 48A
Rated Output Power	3.5 kW · 7.68 kW · 9.6 kW · 11.52 kW
Type 2 / GB-T	32A 1-phase 7 kW · 16A×3 3-phase 11 kW · 32A×3 3-phase 22 kW
Adapter Plug	NEMA 6-20P · NEMA 14-50P · Type F · 3/5 pin 16A & 32A CEE
Rated Input Voltage	240V ± 15% AC
Total Length	5 m (length customizable)
Leakage Protection Device	Type A residual current protection (Type B optional)
Enclosure Material	PC / ABS
Charging Mode	Plug and Play / Card Charging
WiFi / Bluetooth / APP	Optional
Human-Machine Interface	2.8-inch LCD display

Rated Current	16A
Rated Output Power	3.5 kW
Type 2 / GB-T	16A 1-phase 3.5 kW
Adapter Plug	NEMA 6-20P · Type F
Rated Input Voltage	240V ± 15% AC
Total Length	5 m (length customizable)
Leakage Protection Device	Type A residual current protection (Type B optional)
Enclosure Material	PC / ABS
Charging Mode	Plug and Play / Card Charging
WiFi / Bluetooth / APP	Optional
Human-Machine Interface	1.3 / 1.8 / 2.4-inch LCD display

Charging Standard	Type 1 / Tesla · Type 2 / GB-T
Rated Current (Type 1 / Tesla)	32A · 48A
Rated Output Power (Type 1 / Tesla)	7.68 kW · 11.52 kW
Rated Input Voltage	240V ± 15% AC
Type 2 / GB-T	32A 1-phase 240V 7 kW · 16A×3 3-phase 400V 11 kW · 32A×3 3-phase 400V 22 kW
Home Configuration	WiFi & Bluetooth, RFID card swipe
Operation Version Configuration	OCPP 1.6J + 4G / Ethernet
Total Length	5 m (length customizable)
Leakage Protection Device	Type A residual current protection / Type B optional
Enclosure Material	PC / ABS
Charging Mode	Plug and Play / Card Charging
Human-Machine Interface	4.3 in. LCD display

Charging Standard	Type 2
Rated Current	32A 1-phase · 16A×3 3-phase · 32A×3 3-phase
Rated Input Voltage	240V ± 15% (1-phase) · 400V ± 15% (3-phase)
Rated Output Power	7 kW · 11 kW · 22 kW
Home Configuration	WiFi & Bluetooth, RFID card swipe
Operation Version Configuration	OCPP 1.6J + 4G / Ethernet
Total Length	5 m (length customizable)
Leakage Protection Device	Type A residual current protection / Type B optional
Enclosure Material	PC / ABS
Charging Mode	Plug and Play / Card Charging
Human-Machine Interface	LED indicator light

Model	V9
Number of Charging Interfaces	1
Rated Frequency	50 Hz ± 5 Hz
Input Voltage	220 VAC ± 5%
Output Voltage	220 VAC ± 5%
Dimensions	1200 × 260 × 110 mm
Maximum Output Current	32A
Maximum Output Power	7 kW
Internet Access Interface	Ethernet / GPRS / 4G
Communication Protocol	Cloud platform interface protocol / customizable
Input Mode	M1 swipe card
Display Screen	4.3 inches
Monitoring Platform	Integrated card issuing, operation, monitoring and maintenance
Dielectric Strength	> 2000V
Leakage Current	≤ 3.5 mA
Protection Level	IP54
Working Environment	-25 ~ 50 °C
Interface Type	GB 20234.2-2015
Measurement Function	Output electric energy measurement
Protection Function	Overvoltage, undervoltage, short circuit, overload, leakage, surge, over-temperature, insulation monitoring, reverse polarity and lightning protection
Installation Method	Column / wall-mounted
Material	ABS + PC

Model	TDC-01-30 / TDC-01-40
Number of Charging Interfaces	1
Dimensions	1500 × 530 × 215 mm
Maximum Output Current	100A · 135A
Maximum Output Power	30 kW · 40 kW
Rated Frequency	50 Hz ± 5 Hz
Input Voltage	380V ± 15%
Output Voltage	200 ~ 1000V DC
Internet Access Interface	Ethernet / GPRS / 4G
Communication Protocol	Cloud platform interface protocol / customizable
Input Mode	Touch
Display Screen	7 inch
Monitoring Platform	Integrated card issuing, operation, monitoring and maintenance
Dielectric Strength	> 2000V
Leakage Current	≤ 3.5 mA
Protection Level	IP54
Working Environment	-25 ~ 50 °C
Interface Type	GB 20234.2-2015
Measurement Function	Output electric energy measurement
Protection Function	Overvoltage, undervoltage, short circuit, overload, leakage, surge, over-temperature, insulation monitoring, reverse polarity and lightning protection
Installation Method	Fixed with corner expansion screws
Material	Sheet metal

Model	TDC-01-60 / TDC-01-80
Number of Charging Interfaces	2
Dimensions	1680 × 700 × 450 mm
Maximum Output Current	180A · 240A
Maximum Output Power	60 kW · 80 kW
Rated Frequency	50 Hz ± 5 Hz
Input Voltage	380V ± 15%
Output Voltage	200 ~ 1000V DC
Internet Access Interface	Ethernet / GPRS / 4G
Communication Protocol	Cloud platform interface protocol / customizable
Input Mode	Touch
Display Screen	7 inch
Monitoring Platform	Integrated card issuing, operation, monitoring and maintenance
Dielectric Strength	> 2000V
Leakage Current	≤ 3.5 mA
Protection Level	IP54
Working Environment	-25 ~ 50 °C
Interface Type	GB 20234.2-2015
Measurement Function	Output electric energy measurement
Protection Function	Overvoltage, undervoltage, short circuit, overload, leakage, surge, over-temperature, insulation monitoring, reverse polarity and lightning protection
Installation Method	Fixed with corner expansion screws
Material	Sheet metal

Model	TDC-01-120 / TDC-01-160
Number of Charging Interfaces	2
Dimensions	1680 × 700 × 450 mm
Maximum Output Current	250A
Maximum Output Power	120 kW · 160 kW
Rated Frequency	50 Hz ± 5 Hz
Input Voltage	380V ± 15%
Output Voltage	200 ~ 1000V DC
Internet Access Interface	Ethernet / GPRS / 4G
Communication Protocol	Cloud platform interface protocol / customizable
Input Mode	Touch
Display Screen	7 inch
Monitoring Platform	Integrated card issuing, operation, monitoring and maintenance
Dielectric Strength	> 2000V
Leakage Current	≤ 3.5 mA
Protection Level	IP54
Working Environment	-25 ~ 50 °C
Interface Type	GB 20234.2-2015
Measurement Function	Output electric energy measurement
Protection Function	Overvoltage, undervoltage, short circuit, overload, leakage, surge, over-temperature, insulation monitoring, reverse polarity and lightning protection
Installation Method	Fixed with corner expansion screws
Material	Sheet metal

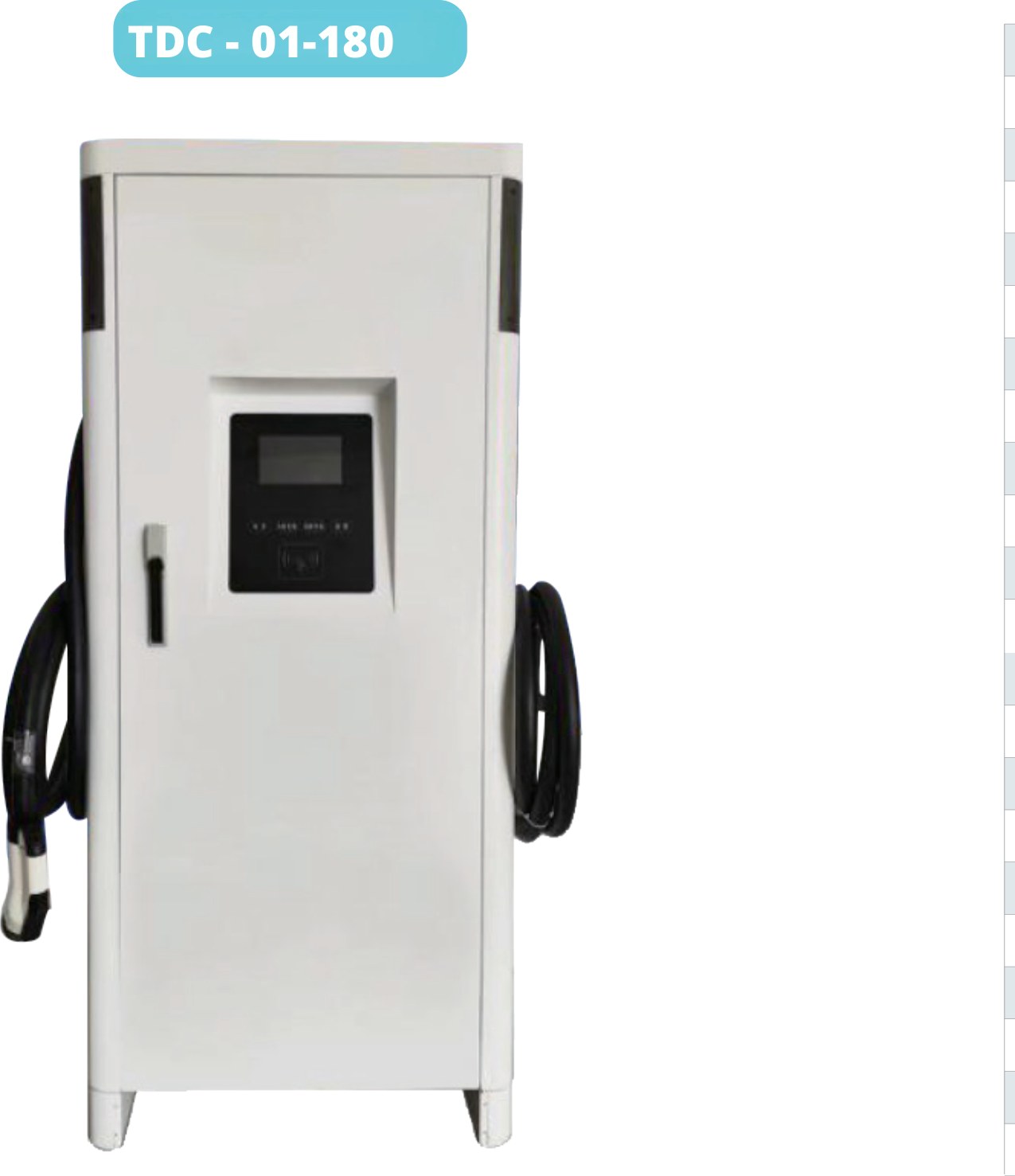

Model	TDC-01-180 / TDC-01-240 / TDC-01-320
Number of Charging Interfaces	2
Dimensions	1680 × 700 × 450 mm
Maximum Output Current	250A
Maximum Output Power	180 kW · 240 kW · 320 kW
Rated Frequency	50 Hz ± 5 Hz
Input Voltage	380V ± 15%
Output Voltage	200 ~ 1000V DC
Internet Access Interface	Ethernet / GPRS / 4G
Communication Protocol	Cloud platform interface protocol / customizable
Input Mode	Touch
Display Screen	7 inch
Monitoring Platform	Integrated card issuing, operation, monitoring and maintenance
Dielectric Strength	> 2000V
Leakage Current	≤ 3.5 mA
Protection Level	IP54
Working Environment	-25 ~ 50 °C
Interface Type	GB 20234.2-2015
Measurement Function	Output electric energy measurement
Protection Function	Overvoltage, undervoltage, short circuit, overload, leakage, surge, over-temperature, insulation monitoring, reverse polarity and lightning protection
Installation Method	Fixed with corner expansion screws
Material	Sheet metal

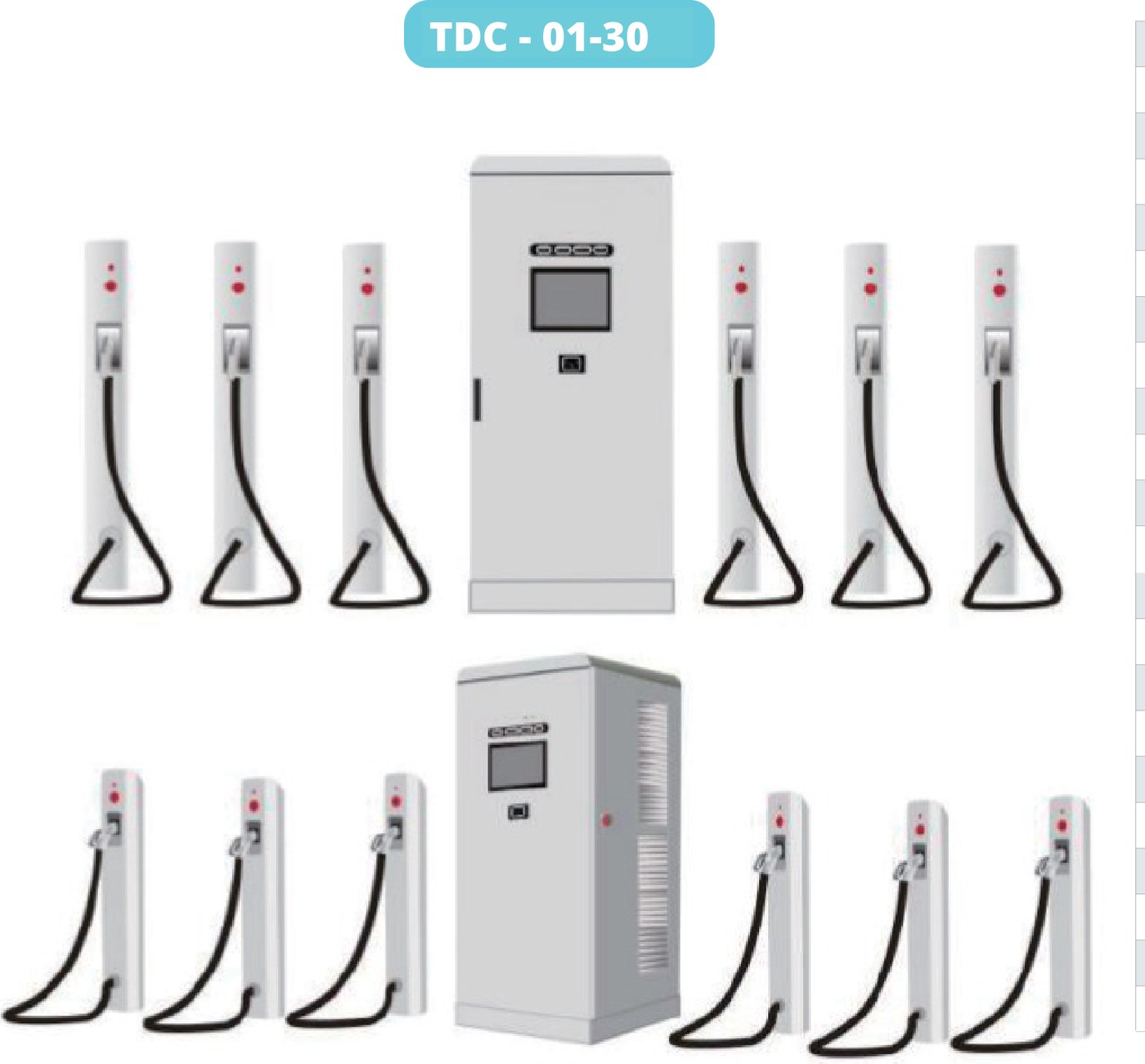

Model	TDC-01-360 / TDC-01-480 / TDC-01-720
Number of Charging Interfaces	6 · 8 · 12
Dimensions	1680 × 800 × 800 mm
Maximum Output Current	250A
Maximum Output Power	360 kW · 480 kW · 720 kW
Rated Frequency	50 Hz ± 5 Hz
Input Voltage	380V ± 15%
Output Voltage	200 ~ 1000V DC
Internet Access Interface	Ethernet / GPRS / 4G
Communication Protocol	Cloud platform interface protocol / customizable
Input Mode	Touch
Display Screen	7 inch
Monitoring Platform	Integrated card issuing, operation, monitoring and maintenance
Dielectric Strength	> 2000V
Leakage Current	≤ 3.5 mA
Protection Level	IP54
Working Environment	-25 ~ 50 °C
Interface Type	GB 20234.2-2015
Measurement Function	Output electric energy measurement
Protection Function	Overvoltage, undervoltage, short circuit, overload, leakage, surge, over-temperature, insulation monitoring, reverse polarity and lightning protection
Installation Method	Fixed with corner expansion screws
Material	Sheet metal
